Mobile Rack -3.5 -SCSI
SI-153SCA
Introduction

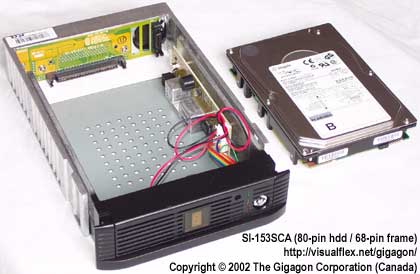

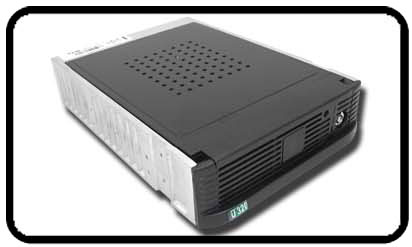

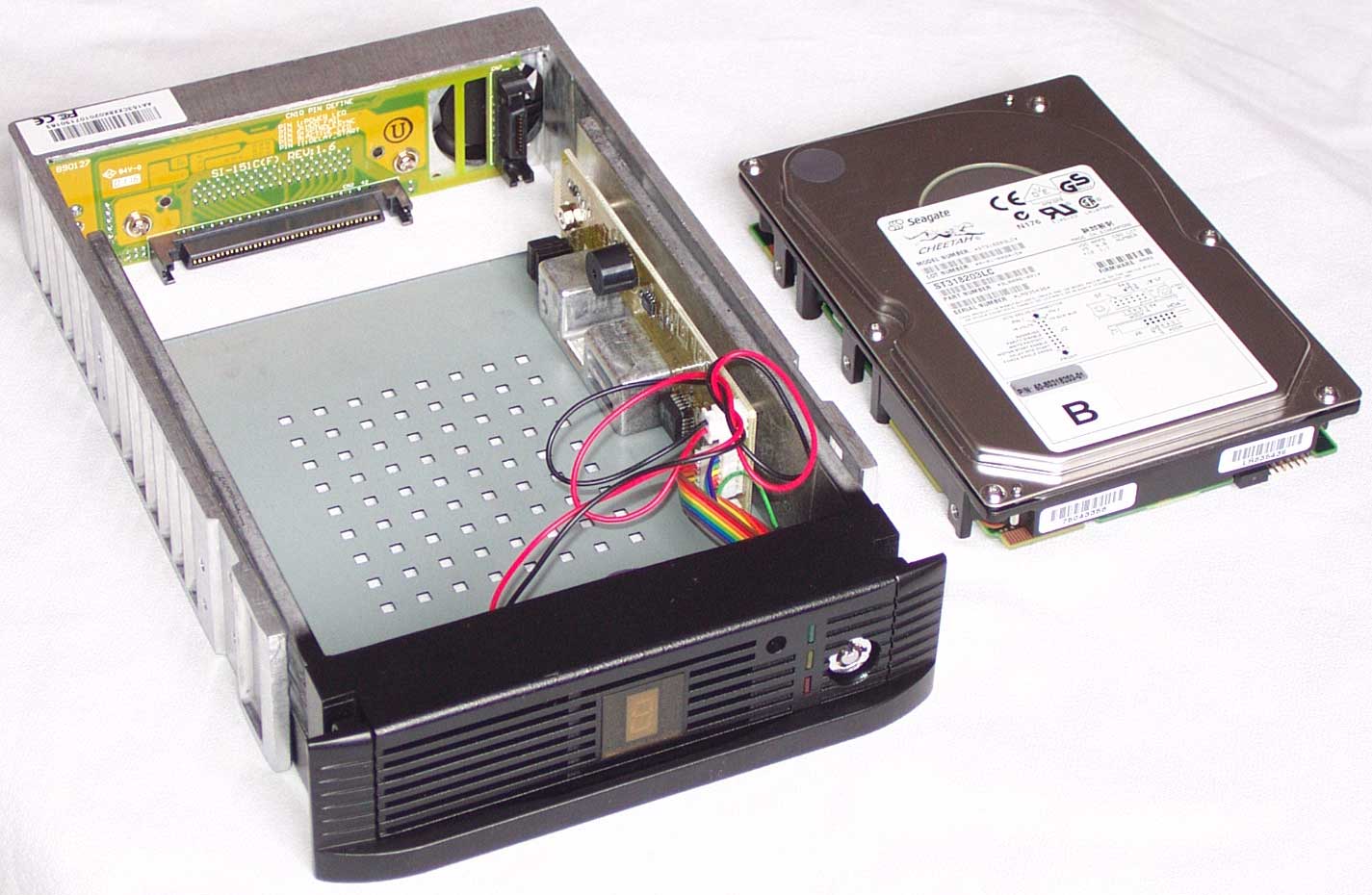

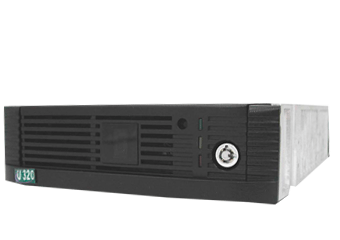

SI-153SCA is a mobile rack for 80pin SCSI hard disk drives. With this device, you can install and replace hard disk drive at any time without the need to take off the PC casing. What’ better, it has a display in front to show ID number. SI-153SCA gives you a convenient & easy way for removable storage solution.
Features
- Industrial oriented design
- Fit for standard 5.25” drive bay
- Compatible for all Tower, Desktop PC and Raid System cases
- Support 3.5” 80pin SCSI hard disk drives
- One front display to show ID number
- Hot swappable ability
- Easy and quick installation
Specification
| Material |
Aluminum |
| Dimension |
206(L) x 146(W) x 42(H) |
| LED indication |
Green for power on
Yellow for HDD access
Red for HDD fail
Green flash for fan fail
|
| Cooling fan spec |
4 x 4 x 1 cm, 6.8 CFM |
| Color |
Black & Beige |
| Interface |
80pin SCSI hard disk drives, transfer rate up to 320MB/s
|
| Weight |
900 g |
| Safety Certificate |
CE and FCC approval |
| System Requirement |
Support Win98SE/ME/2000/XP
SCSI supported Motherboards or Controller card is required
|
Accessories
manual
screws
Key
Packing
| PCS |
N.W(kg). |
G.W(kg). |
MEASUREMENTS |
|
20
|
19.0
|
20.0
|
49.4*34.2*30.6
|
Le SSI SI-153SCA tiroir amovible pour 3.5" disques durs SCA
SI-153SCA
SCA HDD directly
Rotate SCSI ID DISPLAY
FAN Failure Detection and Temperature Alarm
Support Ultra II Wide SCSI interface

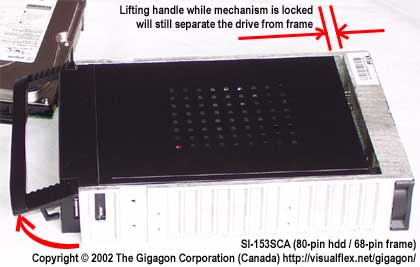

Metal Force less Handle
Aluminum Tray & Frame, excellent ventilation
| Dimension |
206(L)*146(W)*42(H) |
| Weight |
900 g |
| Temperature |
Operating 5~60 Degree C Non-operating -25~80 Degree C |
| Interface |
Multi mode support in either SE (Single End) mode, or
LVD (Low Voltage Differential) Mode |
| HDD Capacity |
Unlimited |
| Power Input |
+12V DC +/- 5% , +5V DC +/- 5% |
| Power Output |
+12V DC 4A, +5V DC 3A |

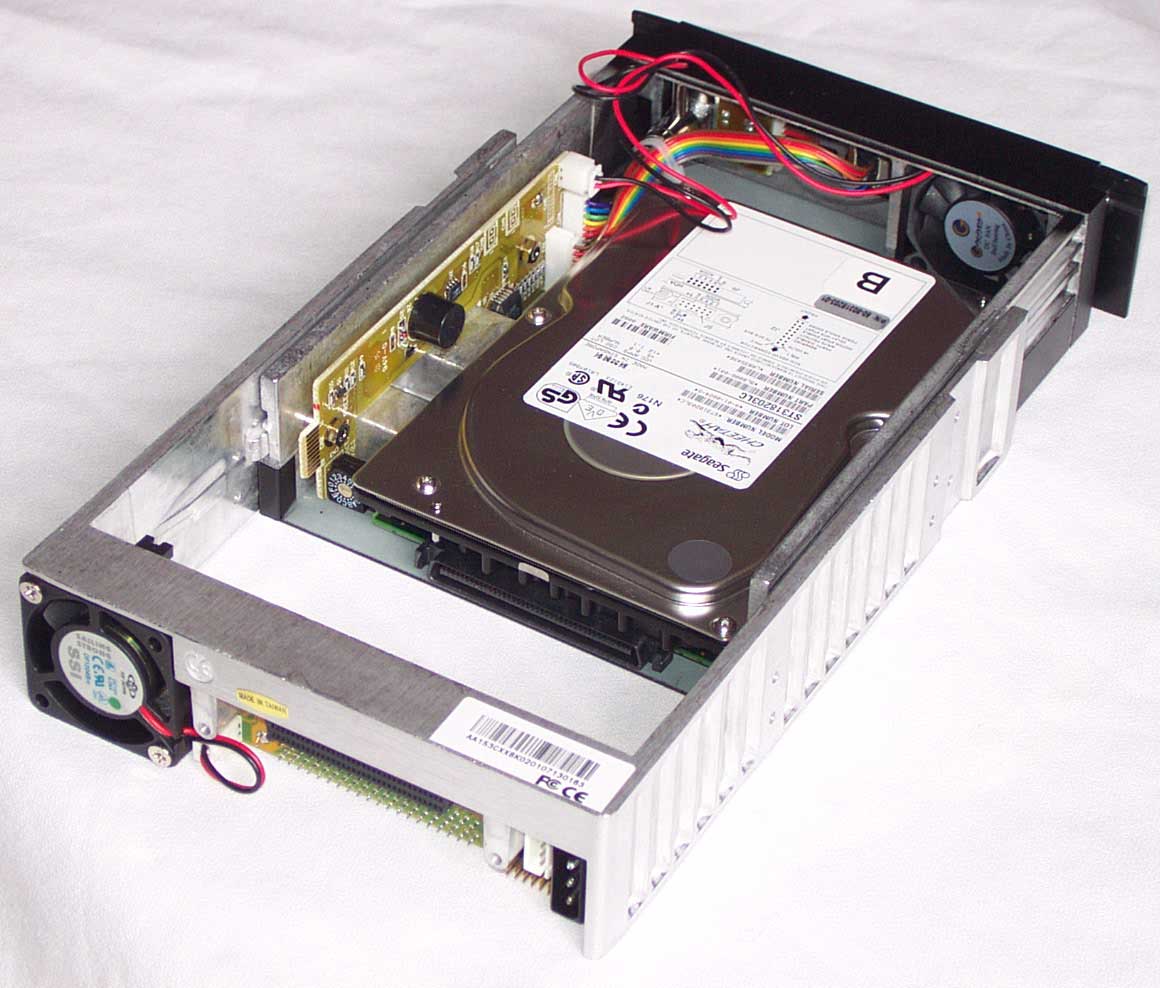

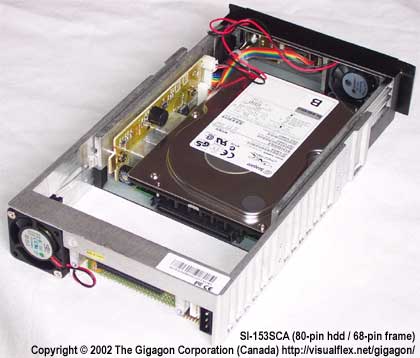

| Cooling System |

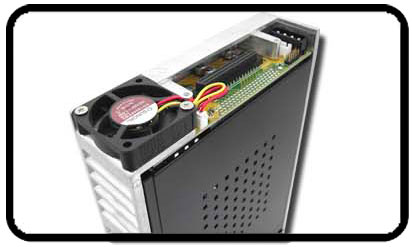

Rear 4*4*1 cm 6.8 CFM Cooling Fan
Front 4*4*1 cm 6.8 CFM Cooling Fan (Option) |
| Humidity |
Operating 20%~80%
Non-operating 15%~90% |
| Material |
Metal ( Aluminum ) |

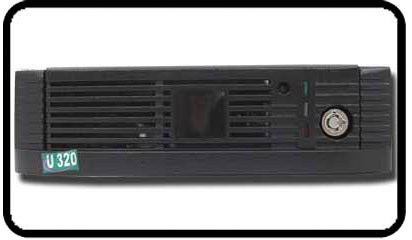

| Display |
Green LED for Power On
Brown LED for HDD Accessing
Red LED for HDD Fail
SCSI ID Display in Front Bezel |
| Hot Swap |
Level 4 , Hot Swap on an active bus. (Bus may have active I/O processes ongoing, but device being inserted of removed must be idle) |
