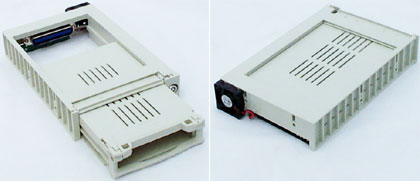

RH-30
-
Multiple Storage Driver Mobile Rack
|
| RH-30 Series (For 3.5" & Half-Height 3.5" H.D.D.) |
- Powerful Easy-to-Use Functions:
- Patent Pulling Handle For Quick Drive Carrier Release.
- Power ON/OFF Key Lock To Avoid pulling out when working.
- Durable Centronic Connector 2500 Insertion And Removal cycles.
- Two LED To Indicate DC.Power And Driver Activity.
- Patent AUTO-DOOR Set To Avoid Dust When Drive Carrier is pull out.
- ¡@
- BOTH ATAPI AND SCSI TYPE FOR YOUR CHOICE

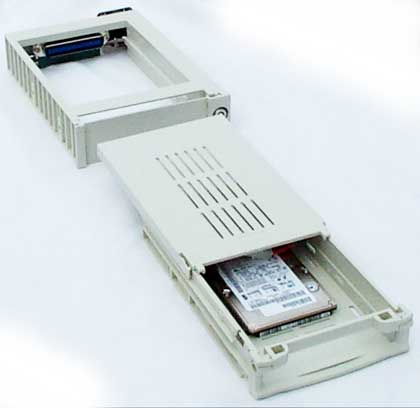

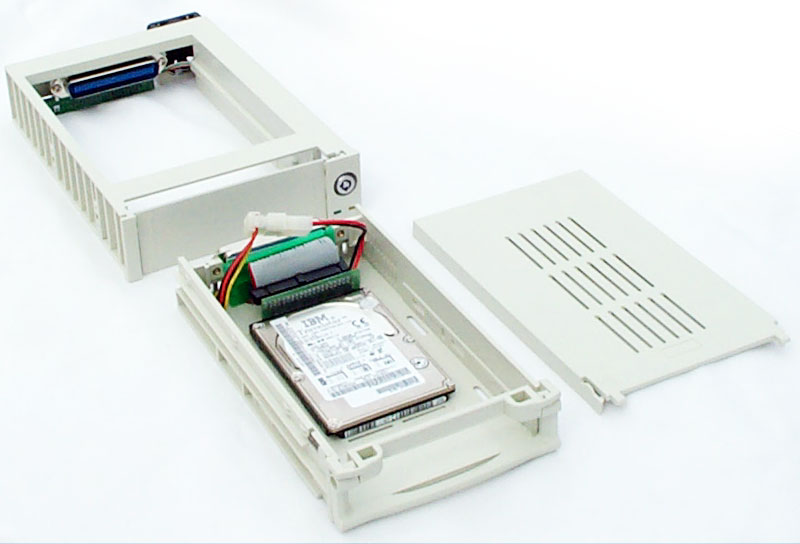

- The RH30 is a raliable,lightweight Removable Rack for 3.5"AT/IDE or SCSI derices as.MO,ZIP,LS120,TYPE,H.D.D.,Users Can easily replace,and add devices without opening the PC Case.
- RH-30 Specifications
- ¡@
-
|
Environment Specifications
|
|
Operation
|
Storage
|
| Ambient Temperature |
-5¢XC to 45¢XC |
-20¢XC to 60¢XC |
| Relative Humidity(1) |
10% to 80% |
10% to 90% |
| Alititude |
-1000 to 50,000 ft |
-1,000 to 50,000 ft |
| -304m to 15240m |
-300m to 15,240 |
| Shock |
More then Storage Driver |
- (1)Non-condensing with maximum Gradient of 10%per hour
- ¡@
- PHYSICAL DIMENSIONS
-
-
Physical
-
specifications
|
-
Inner Rack
-
Driver Carrier
|
-
Outer frame
-
Receiving Frame
|
| Height |
35.70mm (1.406") |
42.40mm (1.669") |
| Width |
119.00mm (4.685") |
146.00mm (5.748") |
| Depth |
202.00mm (7.952") |
219.00mm (8.622") |
| Weight |
0.3Kg(0.66 Ibs) |
0.2Kg (0.44IIbs) |
- ¡@
-
|
Chassis Reliability/Maintainability
|
| MTBF |
500,000.Hours |
| Connector insert cycle |
Surpass 2,500times |
| Preventive Maintenance |
None |

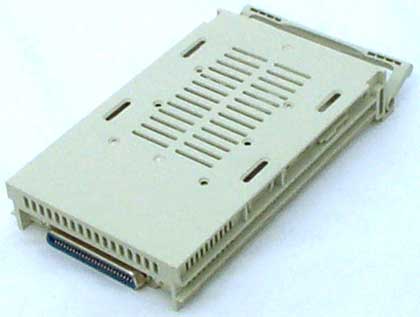

| The Mobile Rack was made with heat-spreading vents on front side and from those vents air is into H.D.D. Hence the High-Capacity H.D.D. would be with good performance of heat-spreading and would easily read data without any mistakes. |
|
