Mobile Rack -3.5 -SCSI
SI-126U3
Introduction

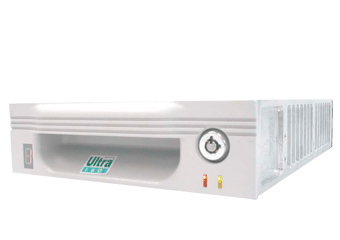

SI-126 is a mobile rack for 68pin SCSI hard disk drives. With this device, you can install and replace hard disk drive at any time without the need to take off the PC casing. What’ better, it has a display to show ID number. SI-126 gives you a convenient & easy way for removable storage solution.
Features
- Industrial oriented design
- Fit for standard 5.25” drive bay
- Compatible for all Tower, Desktop PC and Raid System cases
- Support 3.5” 80pin SCSI hard disk drives
- One display to show ID number
- Hot swappable ability
- Easy and quick installation
Specification
| Material |
Metal (aluminum) |
| Dimension |
232(L) × 146(W) × 42(H) mm |
| LED indication |
Green for power on
Red for HDD access
Orange for HDD fail
|
| Cooling fan dimension |
40 x 40 x 10 mm |
| Color |
Black & Beige |
| Interface |
Support 3.5” 68pin SCSI hard disk drives, transfer rate up to 320MB/s
|
| Weight |
1,000 g |
| Safety Certificate |
CE and FCC approval |
| System Requirement |
Support Win98SE/ME/2000/XP
SATA supported Motherboards or Controller card is required
|
Accessories
manual
screws
Key
Packing
| PCS |
N.W(kg). |
G.W(kg). |
MEASUREMENTS |
|
20
|
21.0
|
22.0
|
51.5*34.2*30.6
|
