Thanks to new technology DVR (Digital Video Recording) can be a complete solution for your state of the art surveillance needs. Turn your own computer into a commercial grade security system. The DVR card integrates a color quad processor, motion sensors, multiplexer, pan & tilt, cctv monitor, and time lapse recorder without the need for separate components.
Remote access is available to view live streaming video or images from any other computer and print still frames from the recorded images. Access all video cameras remotely anywhere in the world with another computer.
Our cards offer remote operation from the internet or modem to modem. Comes as a PCI card ready for your computer. Use any cameras of your choice: color, black and white, wired or wireless cameras.

4 CAMERA - PROFESSIONAL
30 FPS DVR CARD |
-
Up to 4 Camera Inputs
-
High Resolution 320 X 240, 640 X 480 Video Modes
-
Two-way Audio With One Channel Audio Recording
-
Version 6 Advanced Software Package* Included
-
Operating Manual
-
Supports Windows 2000 and XP Professional
4 CAMERA - PROFESSIONAL
HARDWARE COMPRESSION
60 / 120 FPS DVR CARD |
-
M-PEG 4 Hardware Compression (4-120 Model)
-
Up to 4 Camera Inputs
-
High Resolution 352 X 240, 704 X 480 Video Modes
-
Two-way Audio With 4 Channels Audio Recording
-
Version 6 Advanced Software Package* Included
-
Operating Manual
-
BNC Pigtail Connector
-
Supports Windows 2000 and XP Professional
8 CAMERA - PROFESSIONAL
60 / 120 FPS DVR CARD |
-
Up to 8 Camera Inputs
-
High Resolution 320 X 240, 640 X 480 Video Modes
-
Two-way Audio With One Channel Audio Recording
-
Version 6 Advanced Software Package* Included
-
Operating Manual
-
BNC Pigtail Connector
-
Supports Windows 2000 and XP Professional
16 CAMERA - PROFESSIONAL
60 / 120 FPS DVR CARD |
-
Up to 16 Camera Inputs
-
High Resolution 320 X 240, 640 X 480 Video Modes
-
Two-way Audio With One Channel Audio Recording
-
Version 6 Advanced Software Package* Included
-
Operating Manual
-
BNC Pigtail Connector
-
Supports Windows 2000 and XP Professional
8 CAMERA - PROFESSIONAL
HARDWARE COMPRESSION
240 FPS DVR CARD |
-
M-PEG 4 Hardware Compression
-
Up to 8 Camera Inputs
-
High Resolution 352 X 240, 704 X 480 Video Modes
-
Two-way Audio With 8 Channels Audio Recording
-
Version 6 Advanced Software Package* Included
-
Operating Manual
-
Supports Windows 2000 and XP Professional
16 CAMERA - PROFESSIONAL
240 FPS DVR CARD |
-
Up to 16 Camera Inputs
-
240 FPS Display & Recording
-
High Resolution 320 X 240, 640 X 480 Video Modes
-
Two-way Audio With One Channel Audio Recording
-
Version 6 Advanced Software Package* Included
-
2 PCI Cards
-
Operating Manual
-
Supports Windows 2000 and XP Professional
16 CAMERA - PROFESSIONAL
480 X 120 FPS DVR CARD |
-
Up to 16 Camera Inputs
-
480 FPS Display, 120 FPS Recording
-
High Resolution 320 X 240, 640 X 480 Video Modes
-
Two-way Audio With One Channel Audio Recording
-
Version 6 Advanced Software Package* Included
-
2 PCI Cards
-
Operating Manual
-
Supports Windows 2000, XP, 98 SE & ME
16 - Camera
480 X 120 FPS
|
16 CAMERA - PROFESSIONAL
480 X 240 FPS DVR CARD |
-
Up to 16 Camera Inputs
-
480 FPS Display, 240 FPS Recording
-
High Resolution 320 X 240, 640 X 480 Video Modes
-
Two-way Audio With One Channel Audio Recording
-
Version 6 Advanced Software Package* Included
-
BNC Back Panel Included
-
3 PCI Cards
-
Operating Manual
-
Supports Windows 2000, XP, 98 SE & ME
16 - Camera
480 X 240 FPS
|
16 CAMERA - PROFESSIONAL
HARDWARE COMPRESSION
480 / 480 FPS DVR CARD |
-
M-PEG 4 Hardware Compression
-
Up to 16 Camera Inputs
-
480 FPS Display, 480 FPS Recording
-
High Resolution 352 X 240, 704 X 480 Video Modes
-
Two-way Audio With 16 Channels Audio Recording
-
Version 6 Advanced Software Package* Included
-
BNC Back Panel Included
-
Operating Manual
-
Supports Windows 2000 and XP Professional
16 - Camera
480 X 480 FPS
|
* Advanced Software Package Includes:
- Version 6 Advanced Software
- Smart Search™ Technology
- Two-way voice communication with audio recording
- Ability to hide selected cameras from view while recording
- Independent camera programming for video compression and type of recording method (motion or continuous)
- User adjustable camera frame rate controls
- J-PEG and M-PEG 4 video compression
- Watermarking for law enforcement grade video authentication
- High Resolution 352 X 240 and 704 X 480 video modes
- Time & date stamping on video playback and video backup
- Software zoom & image enhancement functions
- Programmable video backup & automatic scheduling
- 422 / RS 232 control outputs
- I/O Controls include 16 TTL inputs and 4 sensor outputs - time relay
- Alarm system compatibility for external sensor inputs
- Pan / Tilt / Zoom controls for Pelco and other cameras
- Independent Pan / Tilt / Zoom password protected login
- Single and multi-location remote viewing
- Sensitivity controls for motion detection recording
- Remote search, recording and playback
- Selectable camera zone coverage with motion detection
- Remote server configuration
- Unlimited remote users with web browser
- 16 camera simultaneous remote viewing by web browser and remote software.
- Multi-level password administration
- Virtual keyboard & mouse ability
- Archive selected footage direct to CD-R
- Cash register integration
- Programmable alert settings
- E-Mail event notification
- AVI file save & more
Key Features Include:
- Remote Access Via Modem, Internet, Or LAN From Any Computer.
- Live Streaming Video In Real-time.
- 3 Month Video Recording With Instant Data Retrieval.
- Image Speeds of 60, 120, 240 & 480 FPS available.
- Simultaneous Camera Viewing.
- Motion Detection and Recording.
- Scheduled Recording Capability.
- Access Control.
- Static Picture Capture & More.
- Version 6 Advanced Software Package Offers Additional DVR Functions.
- Multi-location Remote Software.

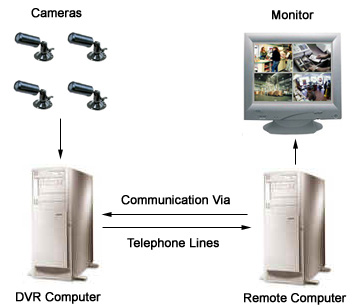

How It Works:
Watching your video cameras remotely is done through the use of high speed internet (DSL or cable) or regular phone lines. Just contact the DVR computer, and see all your surveillance cameras in realtime.
Specifications
| Video Compression: |
J-PEG and M-PEG 4 Software / Hardware |
|
Default Video:
|
352 X 240 and 704 X 480 |
|
FPS:
|
60, 120, 240 & 480 |
|
Composite Output:
|
1 Channel |
|
Connection Type:
|
BNC |
Minimum system requirements are a Pentium 4 - 2 GHZ CPU, 80 gigabyte hard drive, and 128 MB system memory. Larger hard drives are recommended.
Operating systems supported are Windows 2000 and XP Professional. Fully documented owners manual included. Please call with any questions. Just plug in the card & install the software.
|
|
