striving to eliminate the nightmares of zero-support products


Technical Support for ISA cards / Support technique pour vieux cartes ISA

Additional Technical links (used for referencing purposes only):

Goldstar IDE PLUS-V3 Prime Controller Card ISA multi i/o controller

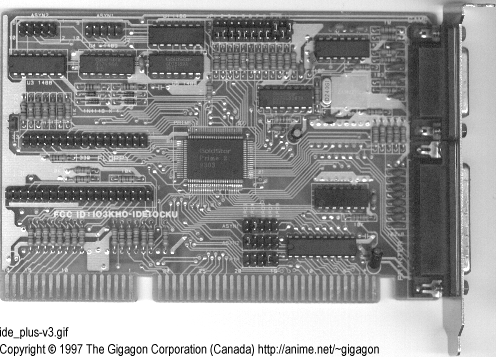

• ide_plus-v3.gif 147087 bytes

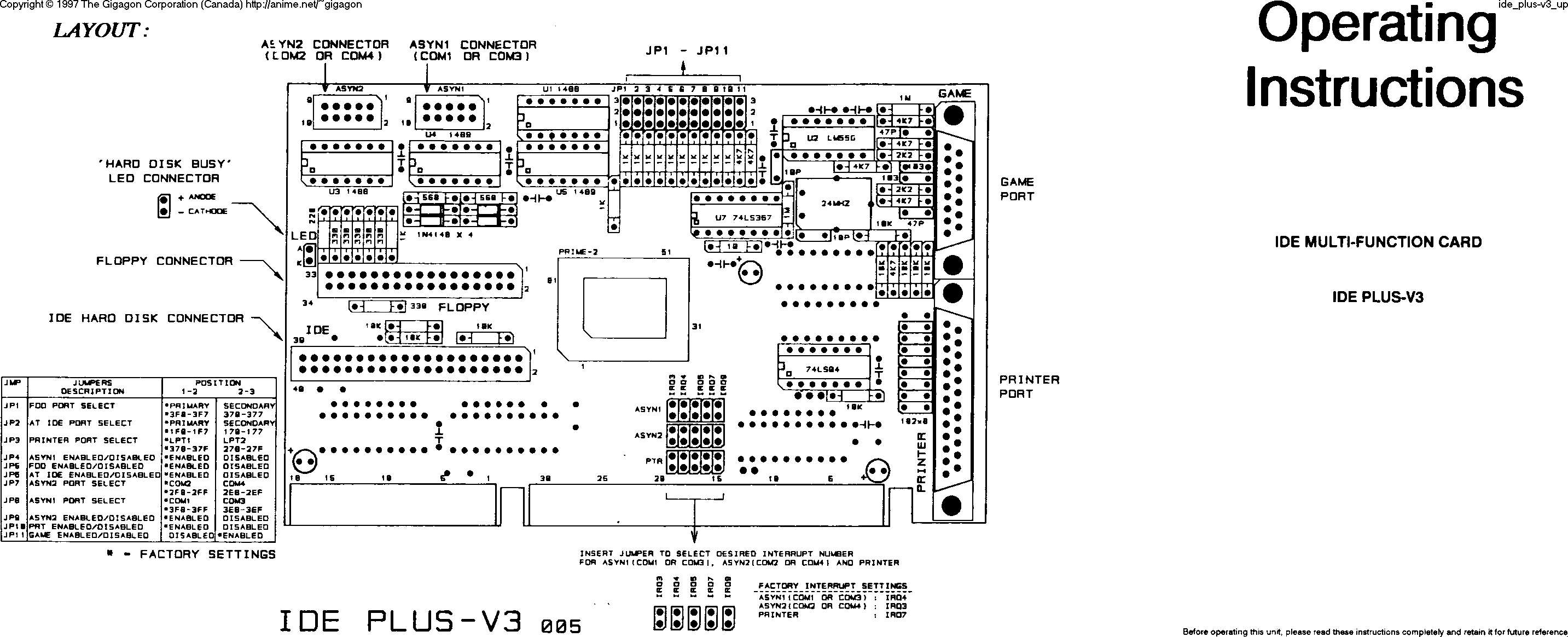

• ide_plus-v3_up.gif 75448 bytes Hi-resolution printable graphic

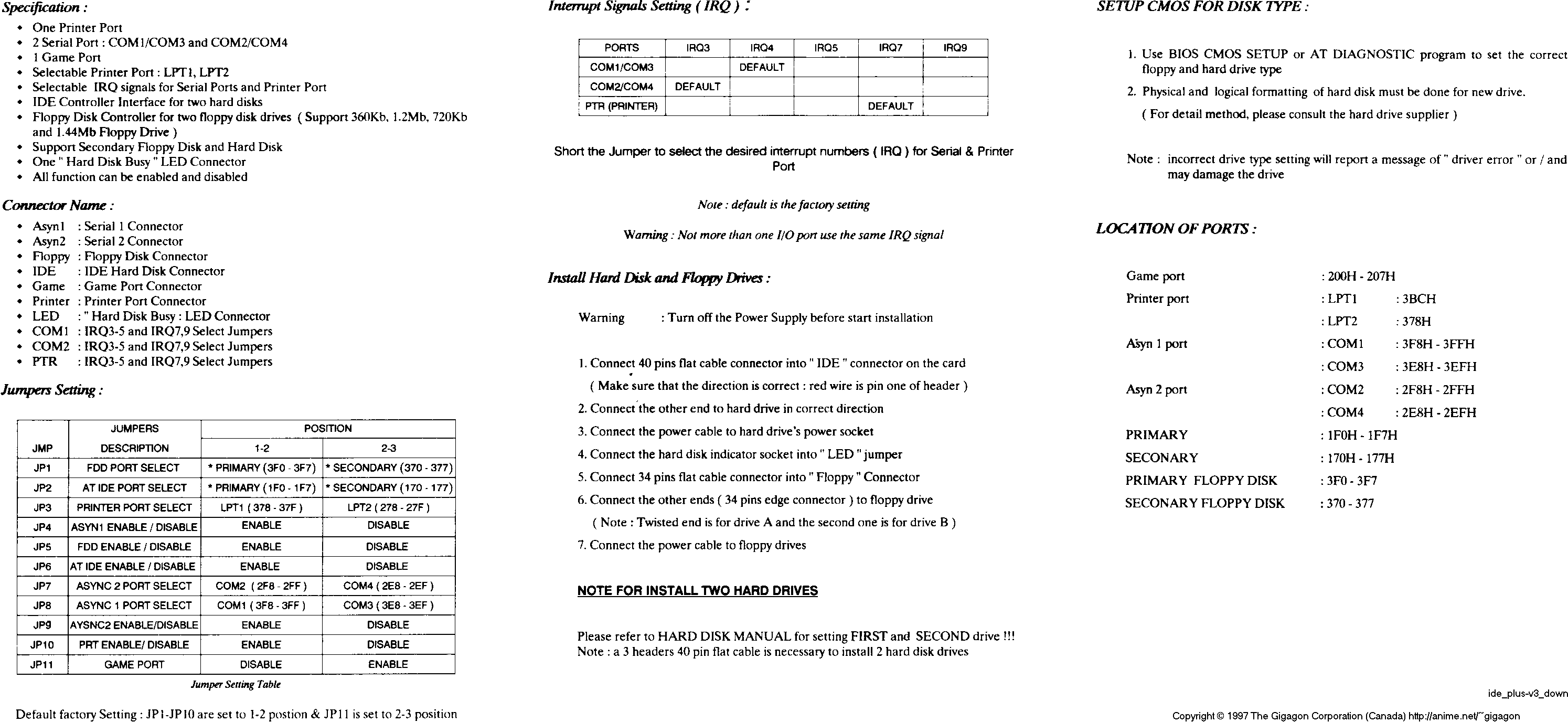

• ide_plus-v3_down.gif 81388 bytes Hi-resolution printable graphic
• Goldstar IDE PLUS-V3 Prime Controller Card from LGElectronics
• This common controller card was cheap and inexpensive, and by our experience the far most widely used controller for any 386 and 486 clones that were built.
• We do not have any more additional information about this controller card, or others similar. Under no circumstances whatsoever may you contact us in any way regarding this. Do not contact us for any technical support information.

Goldstar Prime 2C 9434 I/O card

• PT-607G - FCCID: JPJIOPT606U
• PT607G.PDF (submitted by DRisIN4u@aol.com)
• We do not have any more additional information about this controller card, or others similar. Under no circumstances whatsoever may you contact us in any way regarding this. Do not contact us for any technical support information.

Goldstar Prime2 9349 ISA multi i/o controller

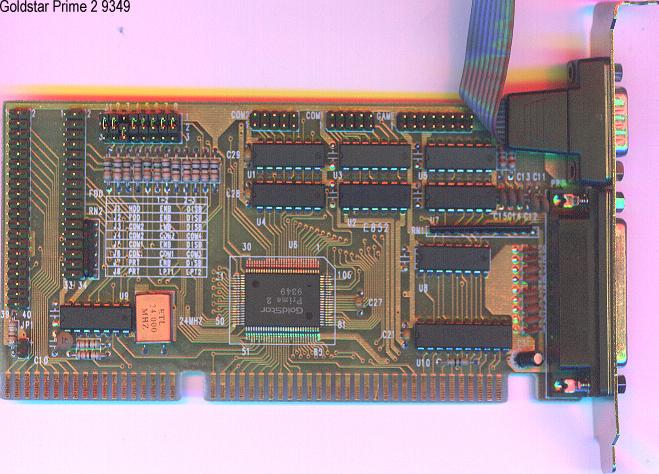

• goldstar9349.jpg 63906 bytes
• Jumper settings as follows:


  J1 HDD J2 FDD J3 COM2 J4 COM2 J5 COM1 J6 COM1 J7 PRT J8 PRT

  1-2 ENB ENB ENB COM2 ENB COM1 ENB LPT1

  2-3 DISB DISB DISB COM4 DISB COM3 DISB LPT2

• Another older, common controller card that was cheap and inexpensive, for many 386 and 486 clones that were built.
• We do not have any more additional information about this controller card, or others similar. Under no circumstances whatsoever may you contact us in any way regarding this. Do not contact us for any technical support information.

Goldstar Prime2 9211 ISA multi i/o controller

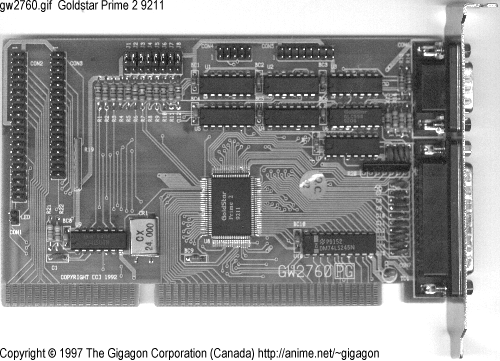

• gw2760.gif 124412 bytes

• http://www.vobis.de/bbs/info/gw2760px.asc Jumperstellungen zur I/O Karte GW2760PX +-----------------------------------------------------------+ ¦ _ ¦ ¦ JP1 o FDD Port 3F0-3F7 Selected ¦ ¦ o ¦ ¦ _ FDD Port 370-377 Selected ¦ +-----------------------------------------------------------¦ ¦ _ ¦ ¦ JP2 o HDD IDE Enabled ¦ ¦ o ¦ ¦ _ HDD IDE Disabled ¦ +-----------------------------------------------------------¦ ¦ _ ¦ ¦ JP3 o ASYN1 Enabled ¦ ¦ o ¦ ¦ _ ASYN1 Disabled ¦ +-----------------------------------------------------------¦ ¦ _ ¦ ¦ JP4 o 3F8H-3FFH [Com1] Selected ¦ ¦ o ¦ ¦ _ 3E8H-3EFH [Com3] Selected ¦ +-----------------------------------------------------------¦ ¦ _ ¦ ¦ JP5 o ASYN2 Enabled ¦ ¦ o ¦ ¦ _ ASYN2 Disabled ¦ +-----------------------------------------------------------¦ ¦ _ ¦ ¦ JP6 o 2F8H-2FFH [Com2] Selected ¦ ¦ o ¦ ¦ _ 2E8H-2EFH [Com4] Selected ¦ +-----------------------------------------------------------¦ ¦ _ ¦ ¦ JP7 o Printer Port Enabled ¦ ¦ o ¦ ¦ _ Printer Port Disabled ¦ +-----------------------------------------------------------¦ ¦ _ ¦ ¦ JP8 o 378H-37fH [LPT1] ¦ ¦ o ¦ ¦ _ 278H-27fH [LPT2] ¦ +-----------------------------------------------------------+ Der Gameport ist nicht abschaltbar

• Another older, common controller card that was cheap and inexpensive, for many 386 and 486 clones that were built.
• We do not have any more additional information about this controller card, or others similar. Under no circumstances whatsoever may you contact us in any way regarding this. Do not contact us for any technical support information.

Goldstar Prime 2C ISA multi i/o controller

The following was taken from http://members.xoom.com/_XMCM/Foeh/prime2c.html :

First of all there's at least 2 types of Prime 2C multi-IO board, since the 2C is just the chip...

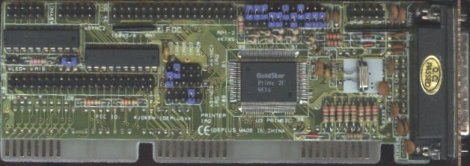

If your card looks like this:

The jumper settings are:

JUMPER  DESCRIPTION      1-2          2-3
JP1     IDE Enable       Enabled      Disabled
JP2     FDD Enable       Enabled      Disabled
JP3     Game Port        Enabled      Disabled
JP4     IDE Port         Primary      Secondary
JP5     ASYNC2 Port      COM2         COM4
JP6     ASYNC2 Enable    Enabled      Disabled
JP7     ASYNC1 Port      COM1         COM3
JP8     ASYNC1 Enable    Enabled      Disabled
JP9     Printer Port     LPT1         LPT2
JP10    FDD Port         Primary      Secondary
JP11    Printer Enable   Enabled      Disabled
JP13    IDE Interrupt    Primary (14) Secondary (15)   (Open = Disable IRQ)

The ASYNC and Printer IRQ settings should be marked on the board.

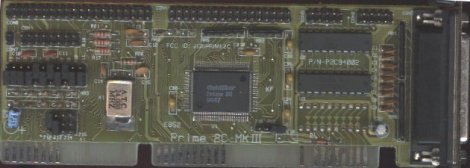

If your card looks like this (MKIII):

The settings are:

JUMPER  DESCRIPTION      1-2          2-3
JP1     FDD Enable       Enabled      Disabled
JP2     FDD Port         Primary      Secondary
JP3     IDE Enable       Enabled      Disabled
JP4     IDE Port         Primary      Secondary
JP5     ASYNC1 Enable    Enabled      Disabled
JP6     ASYNC1 Port      COM1         COM3
JP7     ASYNC2 Enable    Enabled      Disabled
JP8     ASYNC2 Port      COM2         COM4
JP9     Printer Enable   Enabled      Disabled
JP10    Printer Port     LPT1         LPT2
JP11    Game Port        Enable       Disable
JP12    IRQ2             ASYNC1       ASYNC2
JP13    IRQ3             ASYNC1       ASYNC2
JP14    IRQ4             ASYNC1       ASYNC2
JP15    IRQ5             ASYNC1       ASYNC2
JP16    PD0-PD7 Output   Enabled      Disabled

These should be correct, if you find any mistakes please e-mail me with the corrections.

Goldstar Prime 2 Super IDE Prime Controller Card

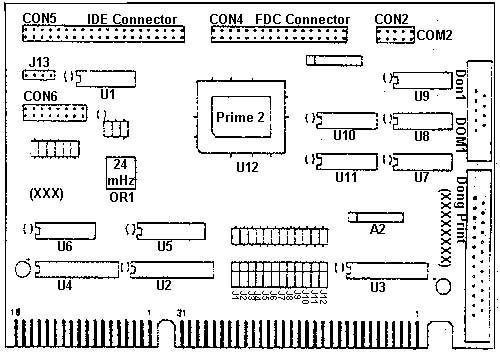

• Prime 2 Super IDE Prime Controller Card
  Connector Description CON1 9 pin serial port (COM1/COM3) CON2 10 pin serial port (COM2/COM4) CON3 25 pin parallel port (LPT1/LPT2) CON4 34 pin FDD port CON5 40 pin IDE HDD port CON6 16 pin game port J13 HDD LED connector   Configuration Switch Definition Config. Number Description Activation High Low 1 FDD enable/disable Enable Disable 2 FDD port select 3F0-3F7 370-377 3 HDD IDE enable/disable Enable Disable 4 At IDE port select 1F0-1F7 3F6,3F7 170-177 376,377 5 XT IDE port select 320-323 324-327 6 AT-XT IDE AT-IDE XT-IDE 7 SIO0 enable/disable Enable Disable 8 SIO0 port select 3F8-3FF (COM1) 3E8-3EF (COM3) 9 SIO1 enable/disable Enable Disable 10 SIO1 port select 2F8-2FF (COM2) 2E8-2EF (COM4) 11 PRT enable/disable Enable Disable 12 PRT port select 378-37F (LPT1) 278-27F (LPT2)
  For more details, please contact: Technical Support | Customer Support

CA8962-5 ISA AT multi i/o plus ide & fdd controller

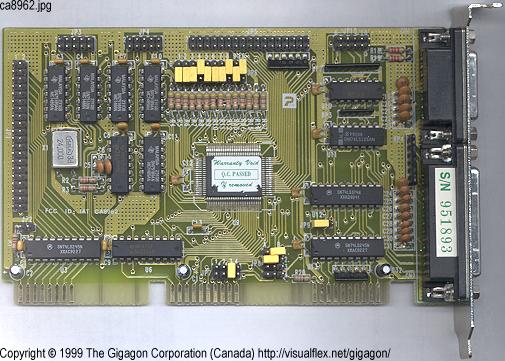

• ca8962.jpg

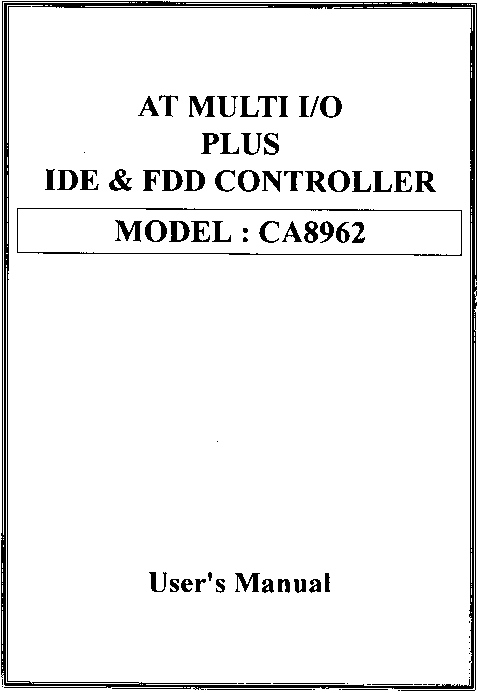

• ca8962_0.gif 5863 bytes

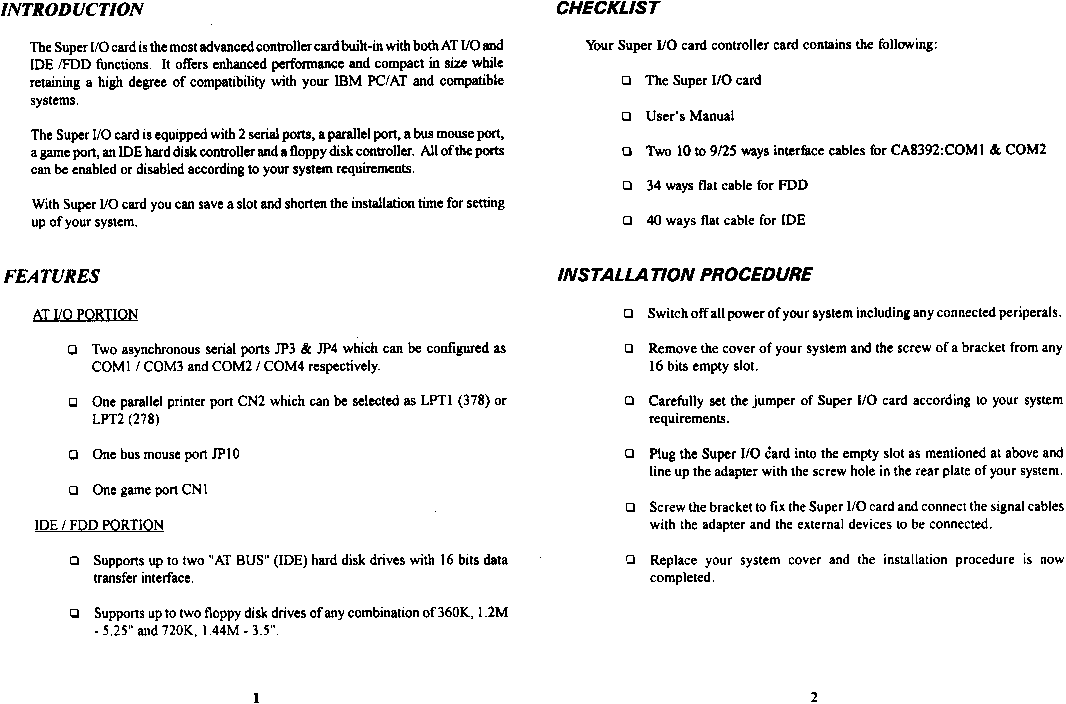

• ca8962_1_2.gif 18982 bytes

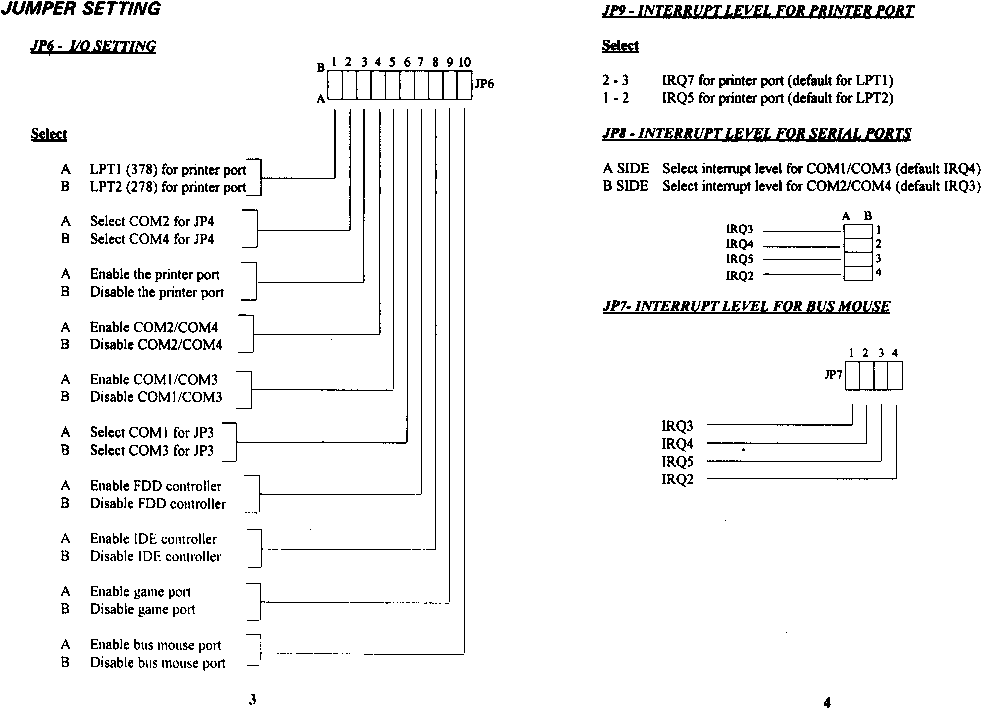

• ca8962_3_4.gif 16516 bytes

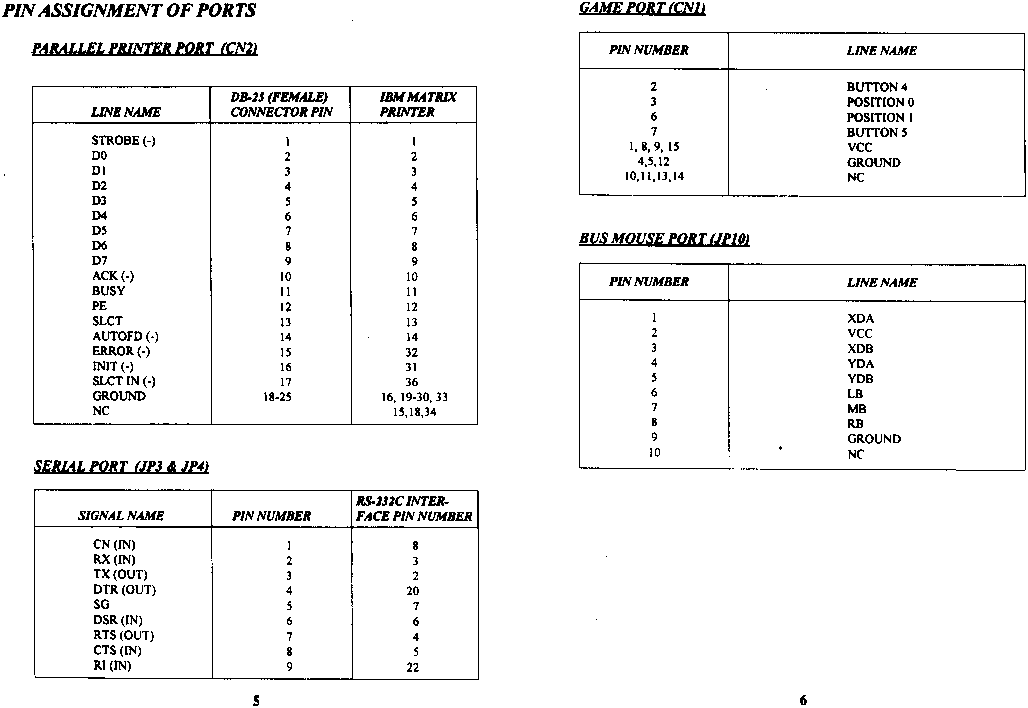

• ca8962_5_6.gif 15006 bytes

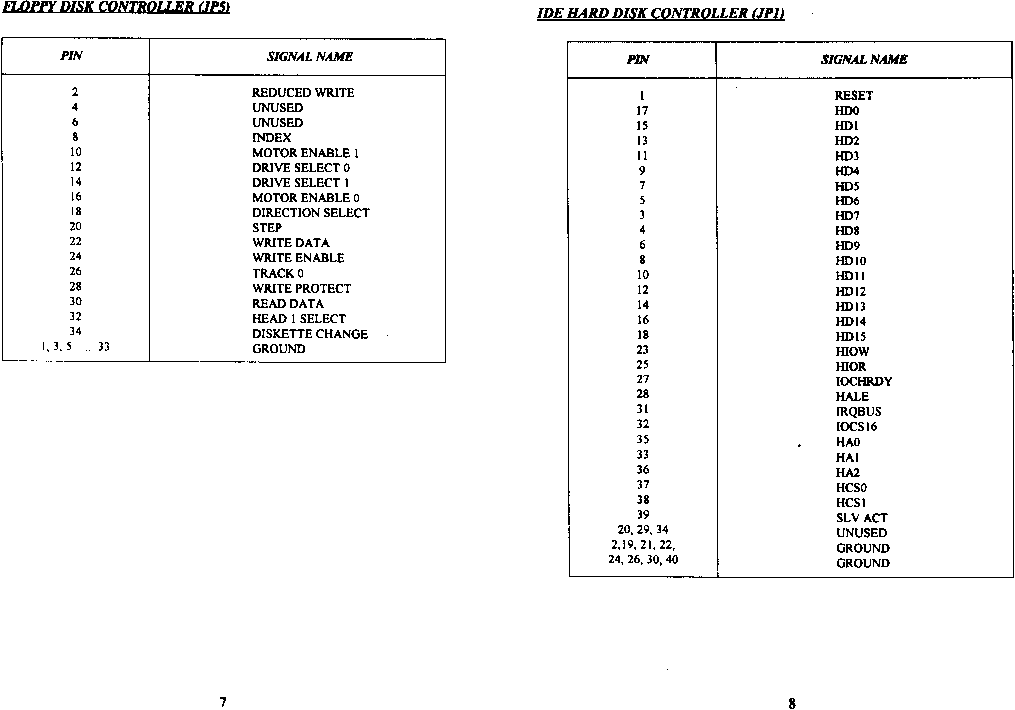

• ca8962_7_8.gif 12268 bytes

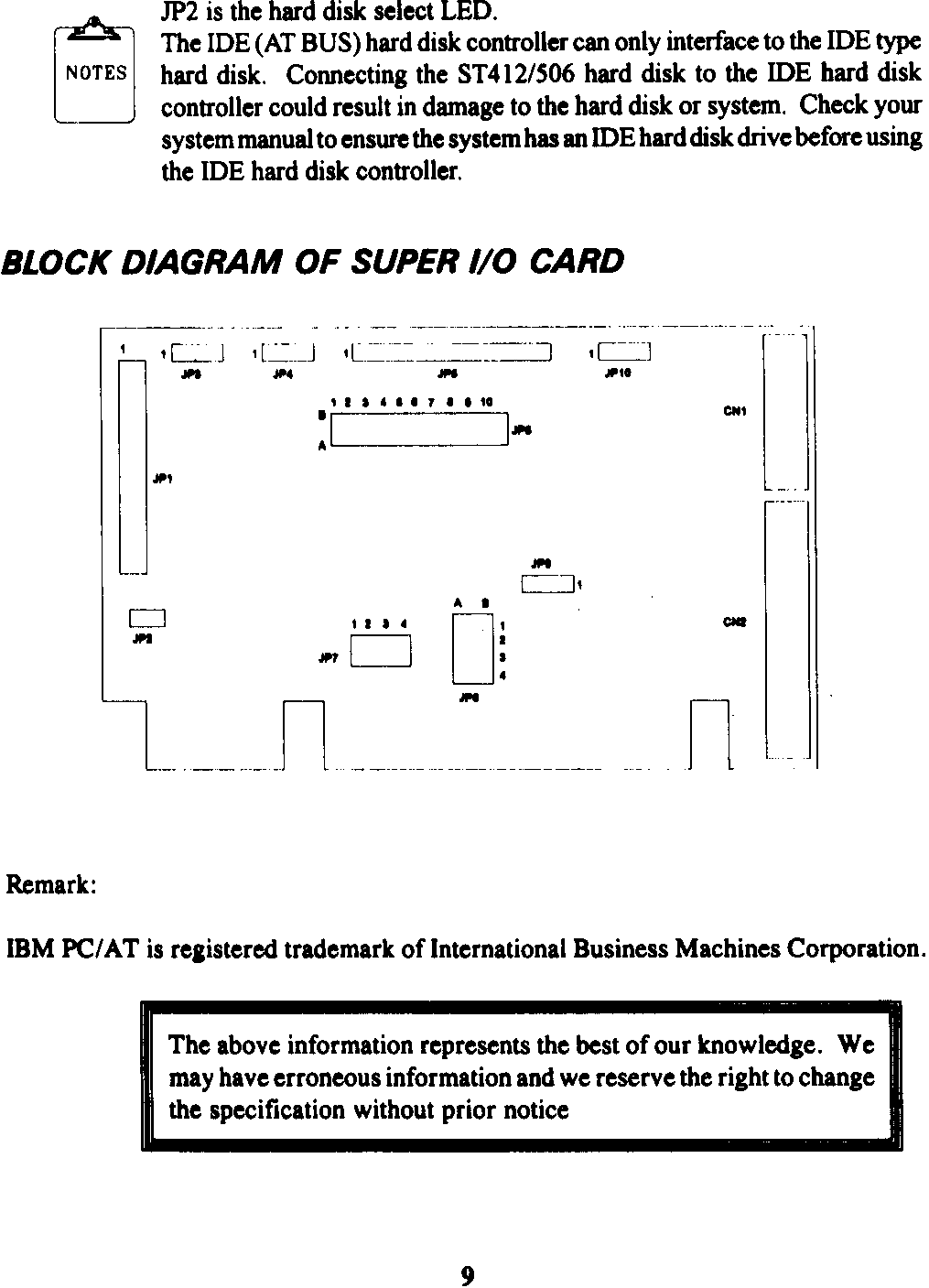

• ca8962_9.gif 27863 bytes Hi-resolution printable graphic
• We do not have any more additional information about this controller card, or others similar. Under no circumstances whatsoever may you contact us in any way regarding this. Do not contact us for any technical support information.

W83758P Winbond W83757AF

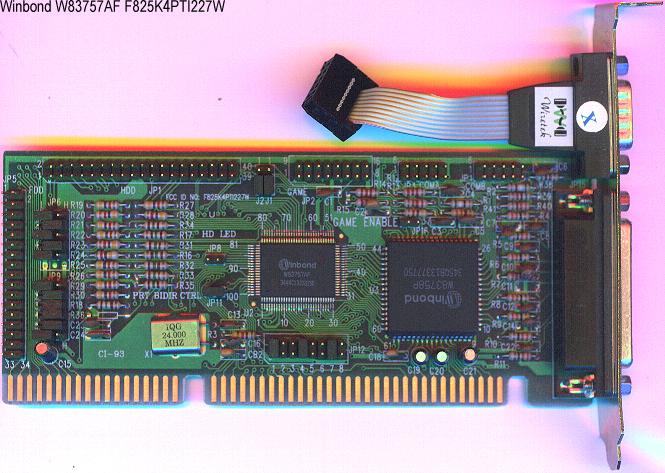

• f825k4pti227w.jpg 66040 bytes

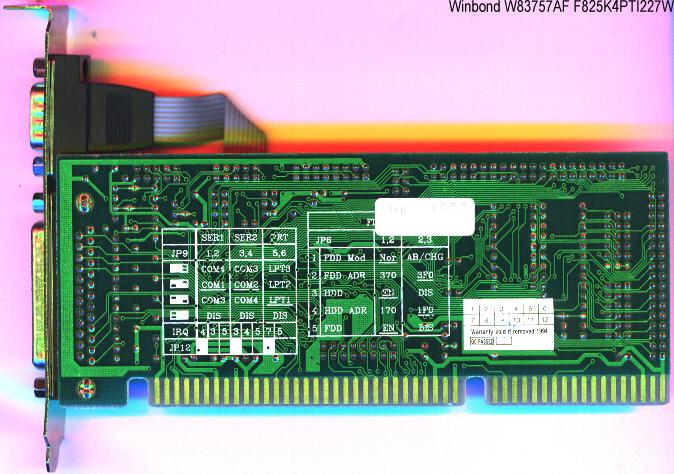

• f825k4pti227w_back.jpg 70956 bytes
• We do not have any more additional information about this controller card, or others similar. Under no circumstances whatsoever may you contact us in any way regarding this. Do not contact us for any technical support information.

W83757S WINBOND W83757F Super I/O Card

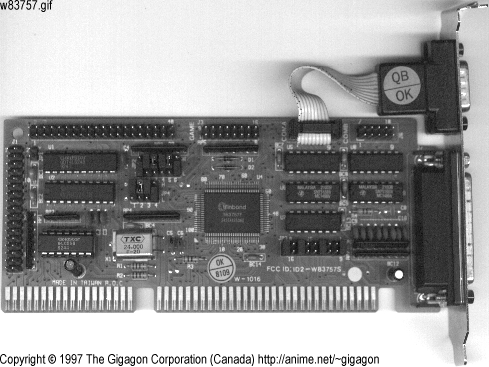

• w83757.gif 120056 bytes

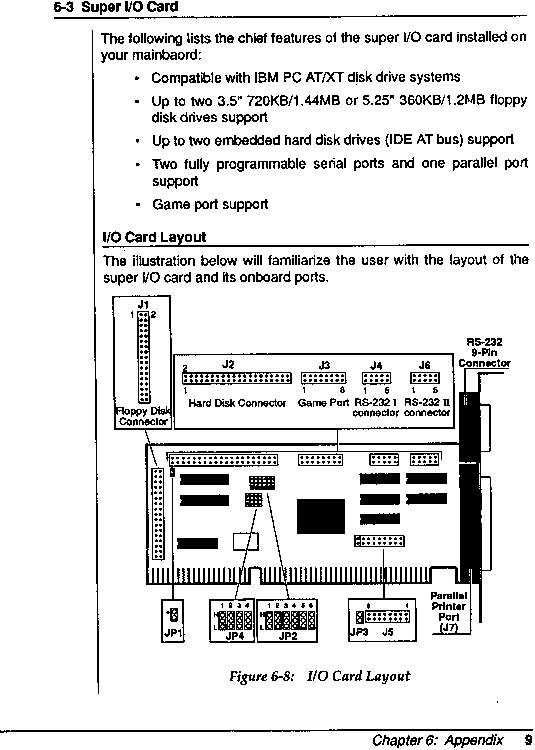

• w83757_9.gif 14049 bytes

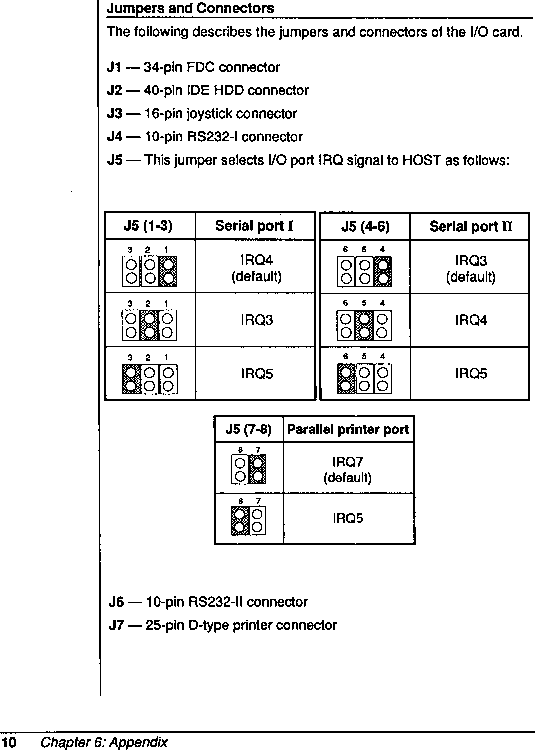

• w83757_10.gif 11741 bytes

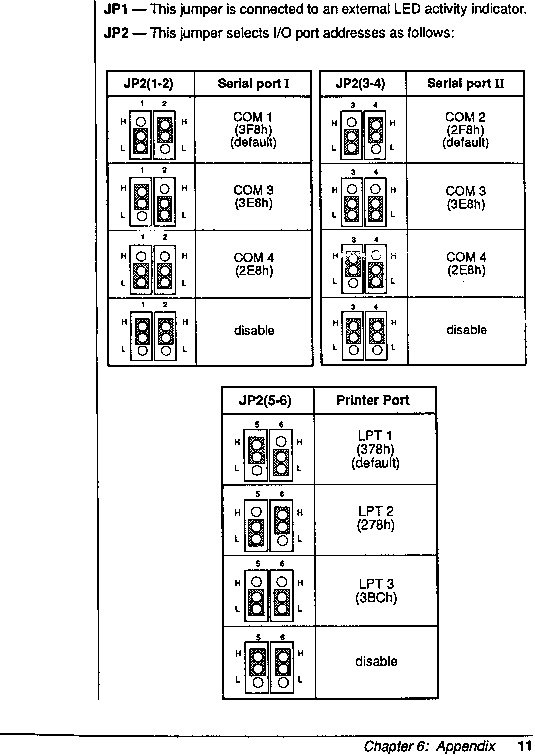

• w83757_11.gif 15080 bytes

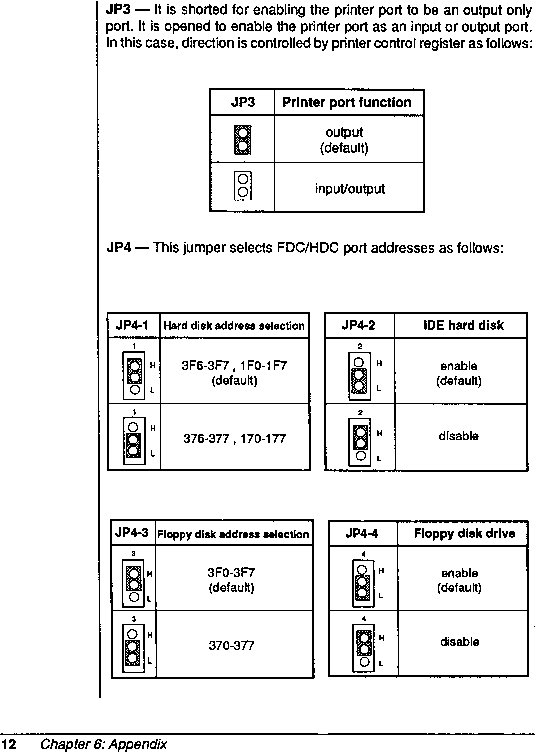

• w83757_12.gif 12857 bytes
• One of the earlier high performance (no 16550), this controller card was found inside a Dtk assembled 386 computer.
• We do not have any more additional information about this controller card, or others similar. Under no circumstances whatsoever may you contact us in any way regarding this. Do not contact us for any technical support information.

MI/O W83787F ISA Card WINBOND MI/O CARD V1.0 (S1.2)

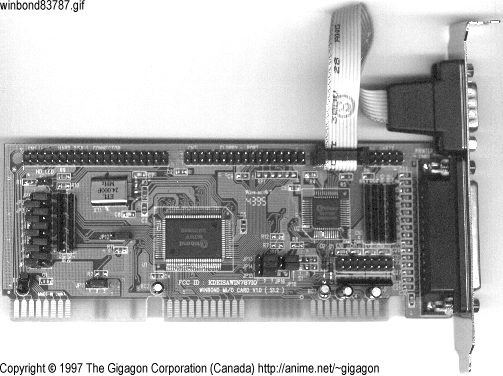

• winbond83787.gif 114838 bytes

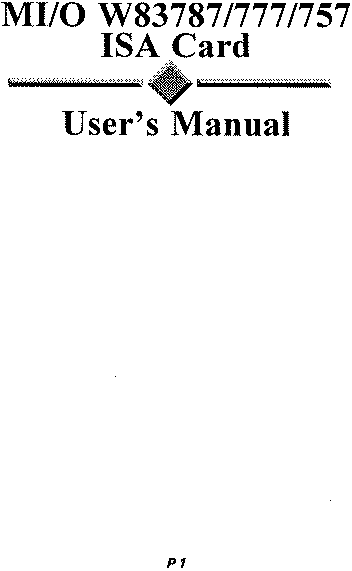

• winbond83787_1.gif 3117 bytes

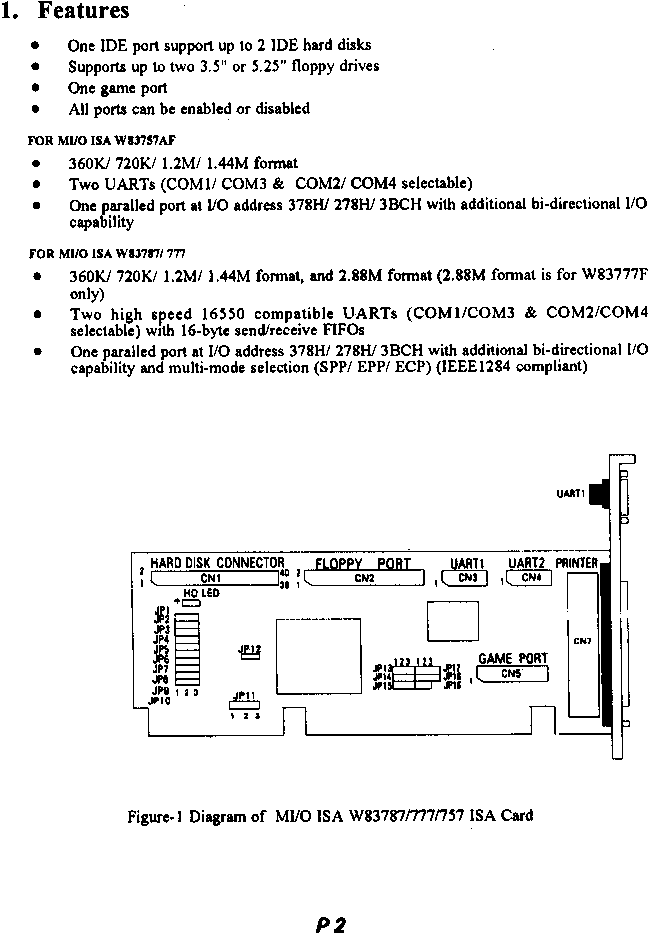

• winbond83787_2.gif 15691 bytes

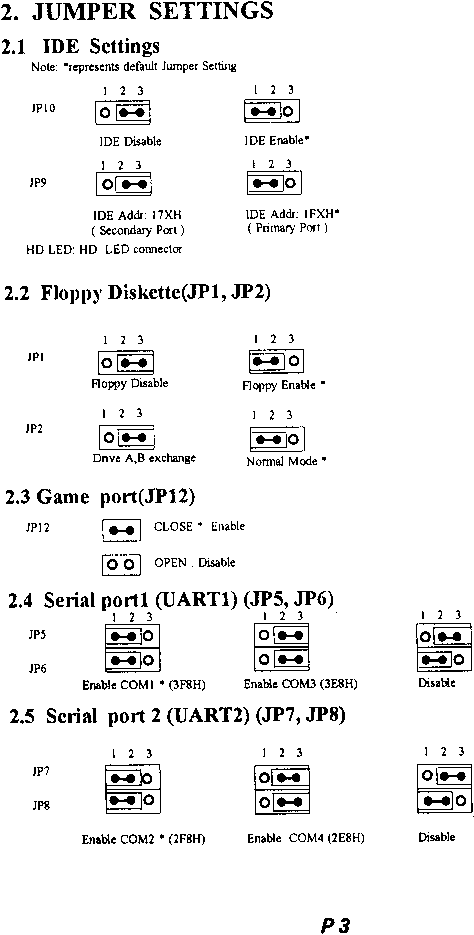

• winbond83787_3.gif 11094 bytes

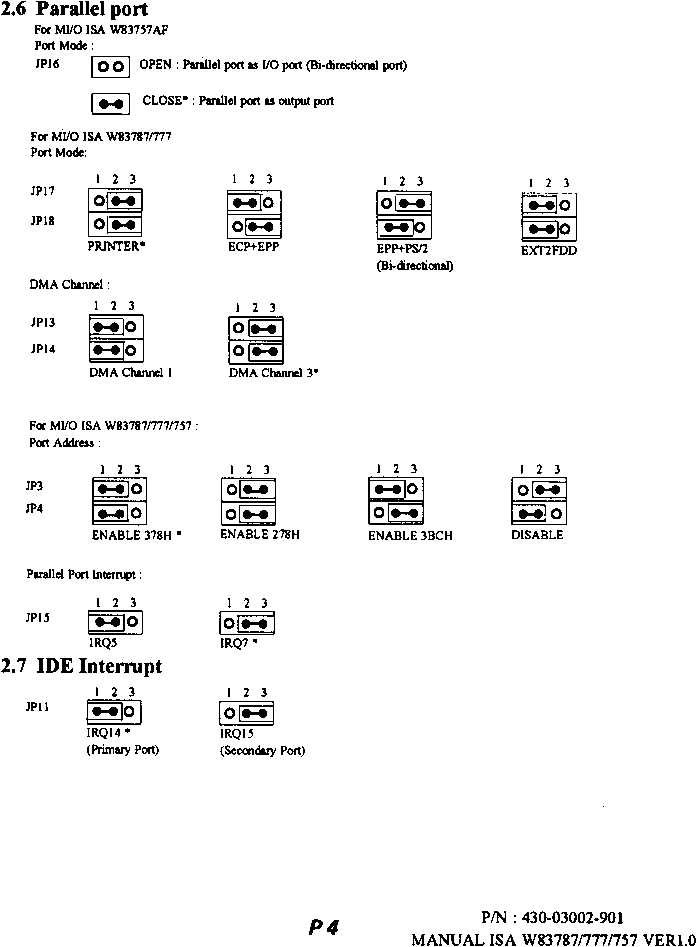

• winbond83787_4.gif 11591 bytes
• Winbond was popular for making 16550 VLB dual ide controllers, and today still manufactures the creme-de-la-creme of ISA controllers. With dual 16550UART to fly your external modems away, jumpers galore allowed manual override of each i/o feature of the card, so it can be used to give a secondary printer port (ECP+EPP control), and IRQ15 for a secondary IDE port, so a CD ROM can be attached as a Secondary Master on a normal 386/486, among many of its other advanced features generally found on Pentium mainboards today.
• We do not have any more additional information about this controller card, or others similar. Under no circumstances whatsoever may you contact us in any way regarding this. Do not contact us for any technical support information.

VIVA MIO83757 W83787F ISA Card (submitted by brian@wildfrontier.com.au)

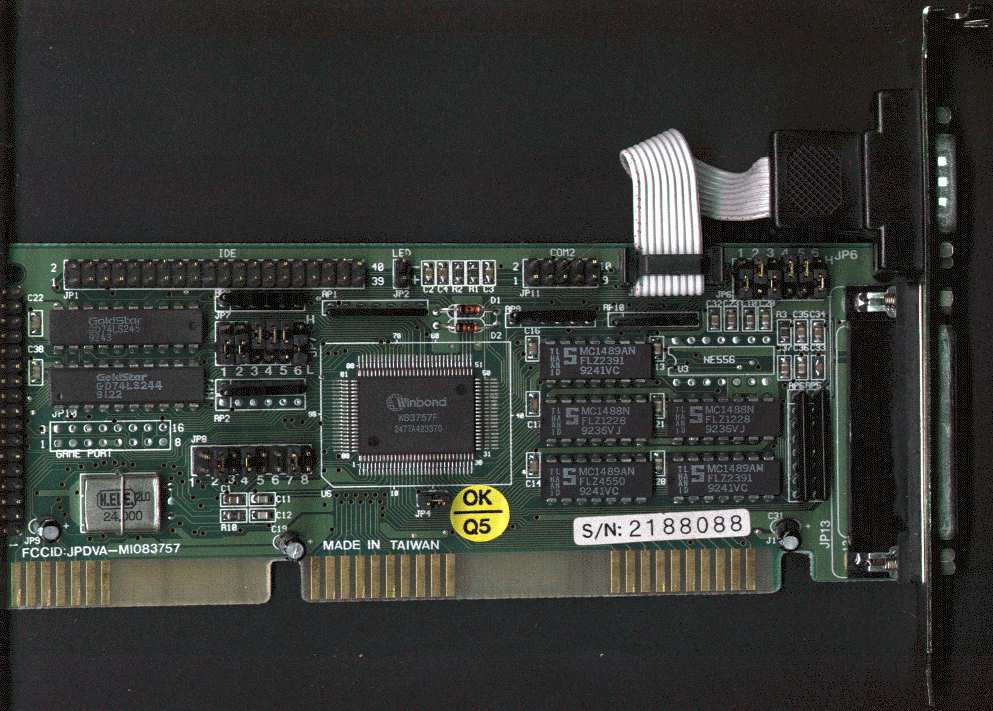

• jpdva-Mio83757.jpg

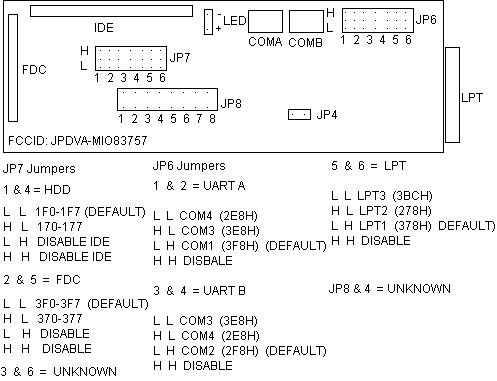

• jpdva-Mio83757-jumpers.gif
• We do not have any more additional information about this controller card, or others similar. Under no circumstances whatsoever may you contact us in any way regarding this. Do not contact us for any technical support information.

Winbond W83757F IO-Controller Card (submitted by w.melia@eandr.com)

• w83757f.txt

6624UG Super I/O Controller Card

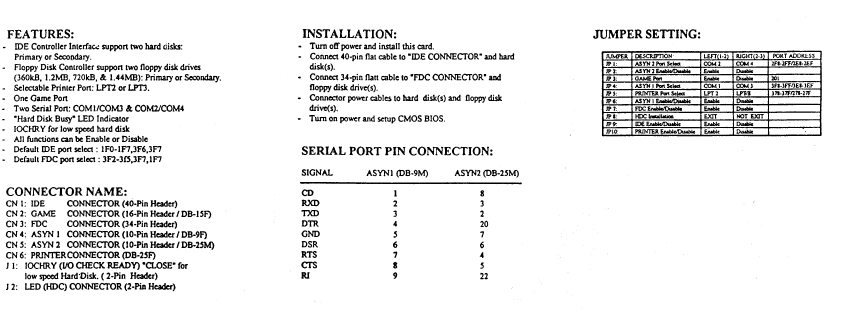

• 6624UG-1.gif
• We do not have any more additional information about this controller card, or others similar. Under no circumstances whatsoever may you contact us in any way regarding this. Do not contact us for any technical support information.

Did this web site help?

• Great! We'd like to you to help us send feedback to our hostmaster goemon@anime.net, if this web site truely saved your life (as this web site usually does), enclose along a small letter of appreciation, without our anime.net web site, you may have never found this web page!
• Suggestions and submissions to add to this page to the webmaster can be emailed to gigacorp@videotron.ca. Questions concerning technical support will not be answered.

What? You can't find what you were looking for?

• We regret to inform you we will not be providing any more technical support other than the current information found on this web page. When we find information to these ISA cards, which is usually from computers we service and by luck came along with documentation, we put them on the web. Please do not ask any questions concerning tech support for these unsupported retired ISA controller cards. You will not receive a reply.
