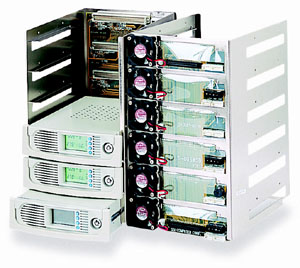

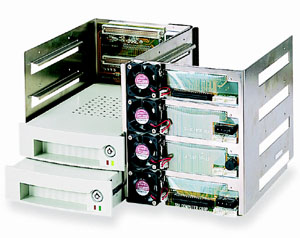

BPA004 / BPA006
4/6 Bay Internal Chassis Unit

Features:

Back-plane PCB design

Various interface support, SCSI / Ultra-Wide / SCA / Fiber channel

Simplified design and removable HDD tray implement easy for installation and maintence

Can be configure to 4/8/12/16 bay external enclosure on a tower case

External connection jumper, ID selector jumper, LED connector for each device

Cooling fan 12V 40x40x10mm (4pcs for BPA004) (6pcs for BPA006)

Lowest price for RAID system

Specifications:

	MTBF:	60,000 POH or more
	Ambient temperature:	Storage -20~95 C, operating 5~45 C
	Relative humidity:	Operating 10~85%
	Dimensions:(WxDxH)	200x149x173mm (SI-004) 200x149x260mm (SI-006)
