Please be noted: The direction of 68 pin wide SCSI connector on the SI-126WS-LVD frame will be unified as the drawing shows below since 31,MAY,1999.






System Configuration

System Board	AMD K6-II 450MHZ CPU
	SIS 530 Chipset
	Award BIOS version 4.51PG
	128 Mbytes SD DRAM
	512 Kbytes Cache
SCSI PCI Card	Adaptec AHA-2940U2W
	ROM BIOS v2.00
Operating System	Microsoft Windows NT 4.0 Server
Testing Software	Adaptec SCSIBench 99

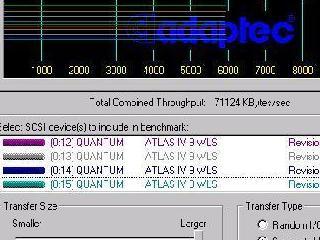

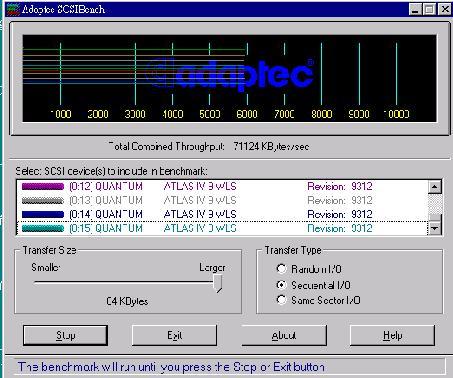

Result	Total combined transfer rate in average: 71.124 MBytes/SEC.



ENVIRONMENT



DATE	31 / MAY/ 1999
Temperature	28 C
Testing Duration	24 Hours
Mobile Rack	SI-126WS-LVD
Number of HDDs	15
Model of HDDs	SEAGATE 9GB LVD 80Mbytes   (ST118202LW)*1                   10000rpm        Quantum 9GB LVD 160Mbytes    (ATLAS IV 9 WLS)*8            10000rpm IBM 18 GB LVD 80Mbytes           (DRVS18V)*7                        10000rpm
Connecting Cable	Amphenol 12 Meters twist pair LVD flat cable

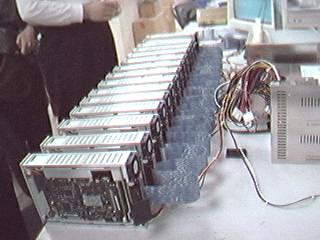

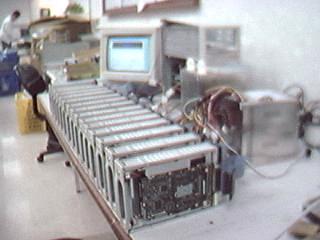

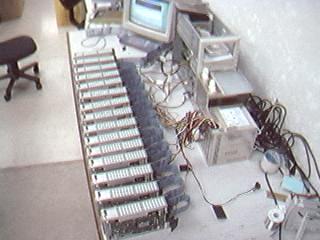

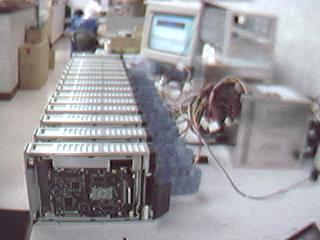

PICTURES OF SSI LABORATORY in this TEST
