¡E Features:

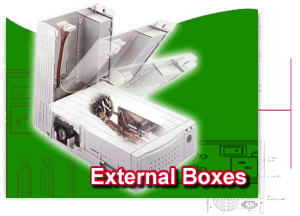

¡EPatent Clamshell design-Fully customizable
¡Efor 3.5"¡A5.25" half-height storage
¡Edevices_HDD¡ACD-ROM¡AMO...etc
¡EFor IDE¡ASCSI ¢¹¡ASCSI ¢º & Wide SCSI
¡Einterface
¡EOptional front panel for different storge devices
¡EHorizonal or Vertical orientation
¡EFull internal EMI/RFI shield meets FCC/CTZ
¡Estipulations
¡EFor several cases stackable as array
¡Econfigurations
¡EBuilt_in fan(5x5cm)for best heat ventilation
¡E(Second fan is option if HDD is installed)
¡EMaster Key(Optional)For office control &
¡Econvenient for service maintenance
¡ESafety lock design to secure your inside device
¡ELCD temperature display(option)
¡EHigh-performance 58W universal AC input
¡E(90~260V) power supply with UL¡ACUL¡A
¡@CE,CB TUV approvals


MODEL SNT-2301A SNT-2301S SNT-2301S SNT-2301W SNT-2501A SNT-2501S SNT-2501S SNT-2501W
Type
3 1/2"
5 1/4"
Interface
IDE
SCSI-I
SCSI-II
Wide SCSI
IDE
SCSI-I
SCSI-II
Wide SCSI
ID Switch
No
Yes
No
Yes
Rca Jack
No
No
No
No
1
1
1
1
Fan
1PC/40*40mm/12VDC
1PC/50*50mm/12VDC
Power Supply
58 w/Universal AC Input/DC Output
58 w/Universal AC Input/DC Output
LED
2
2
2
2
2
2
2
2
Front Panel
3.5"closed/1",1.65"(H)aperture
5.25"closed/1",1.65"(H)aperture

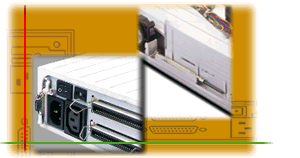

Rear Panel
IDE/SCSI I,II,III+Optional Configurations
IDE/SCSI I,II,III+Optional Configurations
Material
Outer Case & Inner Case: ABS UL 94HB
Inner Case: Zinc Plated
Outer Case & Inner Case: ABS UL 94HB
Inner Case: Zinc Plated
Dimension
249 x 166 x 68mm (9.8 x 6.5 x 2.7inch)
275 x 210 x 68mm (10.8 x 8.3 x 2.7inch)
Weight
1.4 Kgs
1.7 Kgs
Safety
External Enclosure FCC Class B
External Enclosure FCC Class B
Packing
10PCS/ 1 CTN
N.W.: 14.7 Kgs
G.W.: 15.7 Kgs
M / CBF1.95 CBF
10PCS / 1 CTN
N.W.: 17.5 Kgs
G.W.: 18.6 Kgs
M / CBF:2.4 CBF




SNT-2301A
Two 25-Pin Parallel Connectors
IDE Drive Interface Included		 SNT-2501A
Two 25-Pin Parallel Connectors
IDE Drive Interface Included
SNT-2301S
Two 50-Pin SCSI Connectors		 SNT-2501S
Two 50-Pin SCSI Connectors
