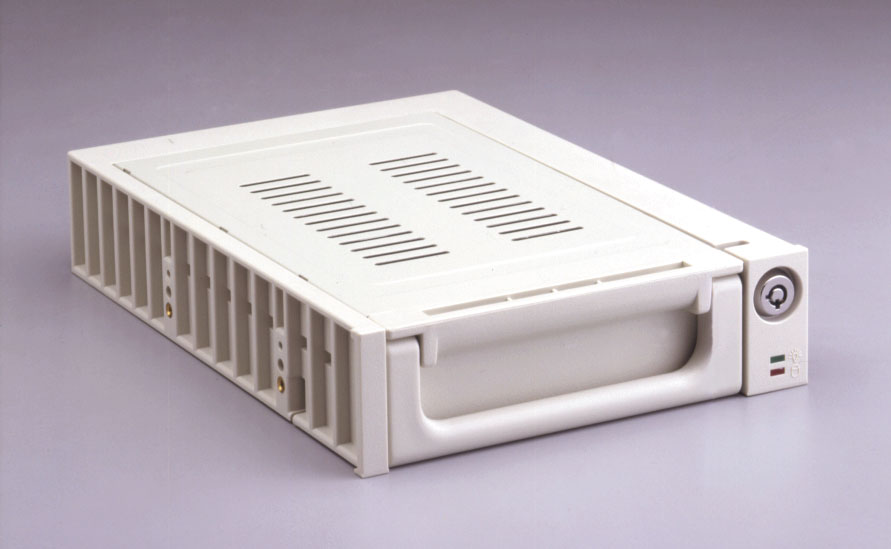

RH-06 Series (For 3.5" H.D.D.)

Main Features:

• Outer Frame, Inner Rack, Top Cover, Bottom Cover, Handle.

Host Interface:

• "A" means IDE, 50Pin.
• "S" means SCSI, 50Pin.
• Inner Rack Swap:RH-07, RH-10, RH-11, RH-12& RH-20.

Power Control:

• "E" means Electronic keylock.
• "P" means Push Button lock.
• "N" means Mechanical keylock, without power switch.
• Host Interface of Inner Rack & Inner Rack is compatible.

CE approved:

• "C" means CE approved
• (Germany Certificate #256357).
• CE Clip Spring for Grounding (Taiwan Patent #85207540).
• "N" means without CE approved

Test Item:

1. Temperature Test:

   TEST EQUIPMENT.

   1. CASE - MINI TOWER CASE (COMPLETED BULIDED)
   2. IDE HDD - SEAGATE ST-32140A (2.1GB, ATA-2, 5400R.P.M.)
   3. SCSI HDD - QUANTUM FB10S011 (1.08GB, SCSI, 5400R.P.M.)
2. Host Interface Test:
   1. Resistance between wire to wire: over 3M ohm
   2. Wiring Resistance between end to end: 500m ohm

   3. Negative Load:	12V2A
      	5V1A

   ---



   1. Outer Frame:
      Material - ABS Plastic ; Brand - Chi Mei 707
   2. Inner Rack:
      Material - ABS Plastic ; Brand - Chi Mei 707.
   3. Handle:
      Active handle.Material - ABS Plastic ; Brand - Chi Mei 707.
   4. Top Cover:
      Coating Iron with Ventilator.
   5. Bottom cover:
      Coating Iron with Ventilator.
   6. Pin:
      IDE - 40Pin ; SCSI - 50Pin.
   7. Connector of Inner Rack & Outer Frame:
      Centronic 50Pin with UL approved.
   8. Keylock of Inner Rack & Outer Frame :
      Mechanical keylock, Electronic keylock and Push Button for choice.
   9. LED light & Wire:
      Size of light head : 2 x 5 m/m + 0.05 m/m. Depth of light head: 6.4+0.1m/m Material - UL approved.
   10. Large 4Pin Female Base :
       Connected with large 4Pin Male Base of H.D.D. Color-Yellow, Black, Black, Red. Wire Material - UL approved.
   11. Screw:
       Material - China Steel CHQ M/T 6 #X6
