ES-12 BF-IDE Series (For Big-Foot 5-1/4" H.D.D.)

Main Features:

Inner Rack, Outer Frame, Handle and Press Board of Handle.

Host Interface: ES-12

"A" means IDE - 64Pin.

Power Control:

"P" means Push Button power.

Test Item:

Temperature Test:
1. IDE HDD - SEAGATE ST-32140A (2.1GB, ATA-2, 5400R.P.M.)
2. SCSI HDD - QUANTUM FB10S011 (1.08GB, SCSI, 5400R.P.M.)
3. WIDE-SCSI HDD - QUANTUM * P34300W (4.3GB, SCSI, 7200R.P.M.)
Host Interface Test:
1. Resistance between wire to wire: over 3M ohm
2. Wiring Resistance between end to end: 500m ohm
3. Negative Load: 12V2A

  5V1A

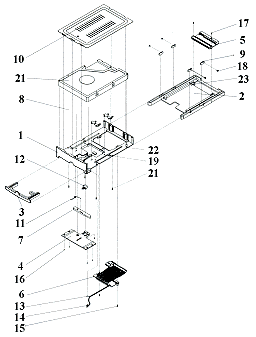

OEM Big-Foot Mobile Rack :
1. Big-Foot Outer Frame:
  Material - ABS Plastic; Brand - Chi Mei 707.
2. Big-Foot Inner Rack:
  Material - ABS Plastic; Brand - Chi Mei 707.
3. Big-Foot Handle:
  Material - ABS Plastic; Brand - Chi Mei 707.
4. Big-Foot Press Board:
  Material - ABS Plastic; Brand - Chi Mei 707. of Handle
5. Big-Foot Inner Rack.
6. Big-Foot Outer Frame.
7. Big-Foot Pulling Handle:
  Material - ABS Plastic; Brand - Chi Mei 707.
8. Big-Foot CE Clip Spring:
  Material - Copper
9. Big-Foot Fix Piece:
  Material - SPHC w/MFZn2-C Painted electroplated.
10. Big-Foot Top Cover:
  Material - SPCC Coating.
11. Retrieved Clip:
  Material - SWP. for Pulling Handle
12. Push Switch.
13. Cord of Push Switch.
14. Wire of LED light with UL approved.
15. Fix Screw for small board:
  Material - China Steel CHQ, M2.6 x 0.45 x L Electroplate - NiPLATE
16. Screw:
  Material - China Steel CHQ, 2.3 x 6L Electroplate - NiPLATE.
17. Fix Screw for large board:
  Material - China Steel, M2.6 x 0.45 x L Electroplate - NiPLATE.
18. Screw Head:
  Material - China Steel CHQ, M3 x 0.5 x 6L Electroplate - NiPLATE.
19. Big-Foot Hard Drive
20. Flat-Head Fix Screw for Hard Drive :
  Material - China Steel CHQ, M3 x 0.5 x 6L Electroplate - NiPLATE.
21. Flat-Head Fix Screw for 3-1/2" Hard Drive :
  Material - China Steel CHQ, M0.6 - 32" Electroplate - NiPLATE.
22. Steel Stick of Inner Rack:
  Material - Copper ø4 x M2.6 x 0.45 x 3.5L.
23. Copper Stick of Outer Frame:
  Material - Copper ø4 x M2.6 x 0.45 x 4.75L.
